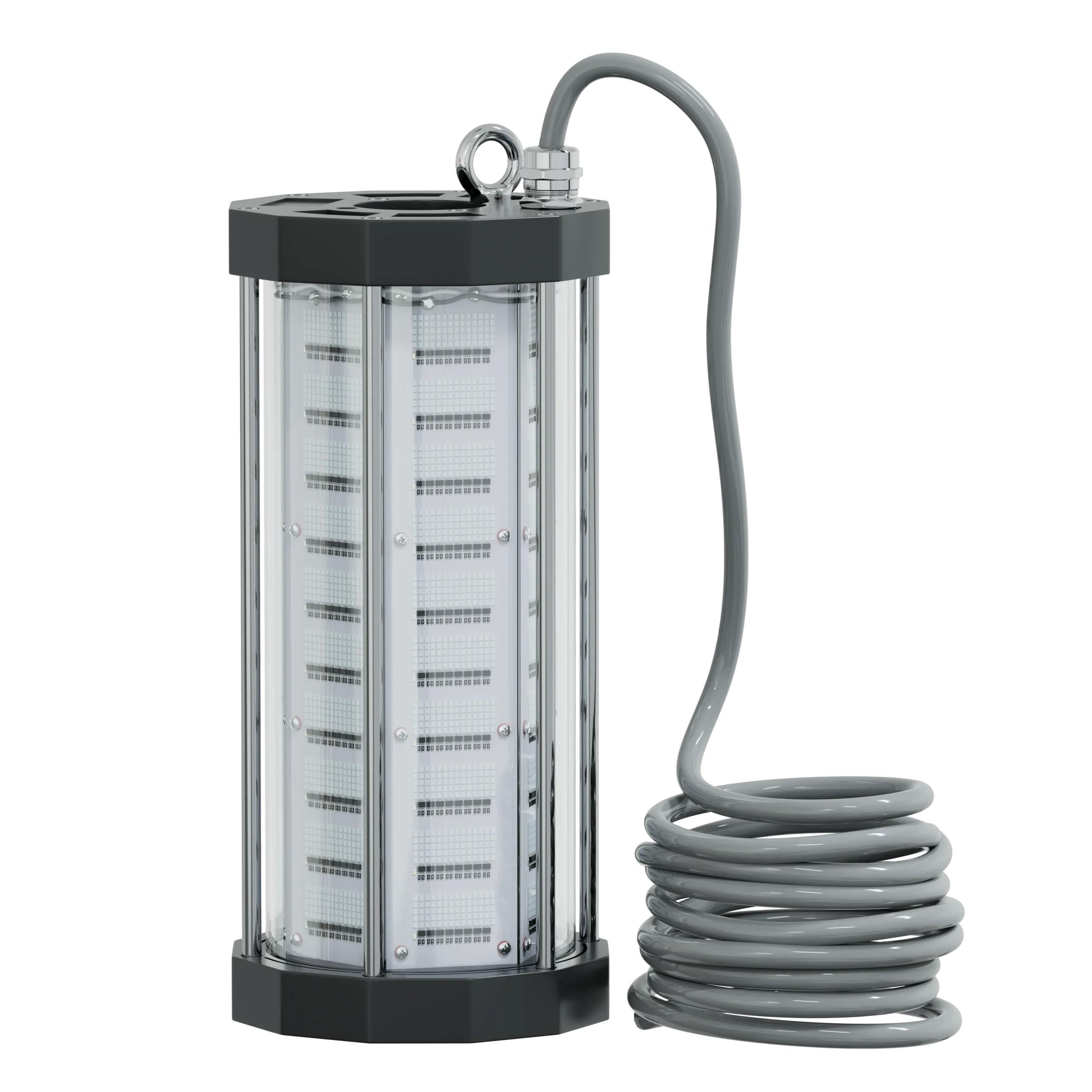

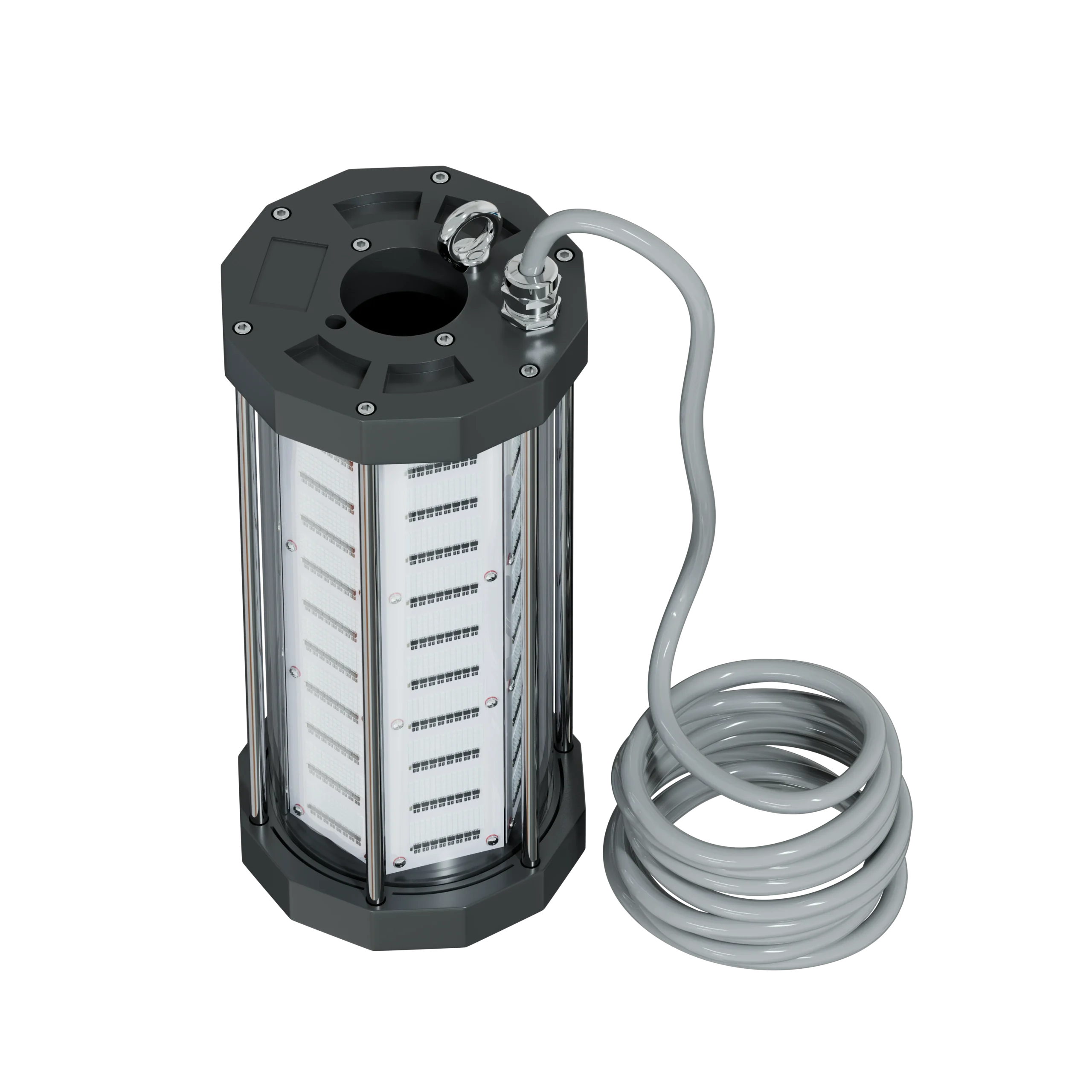

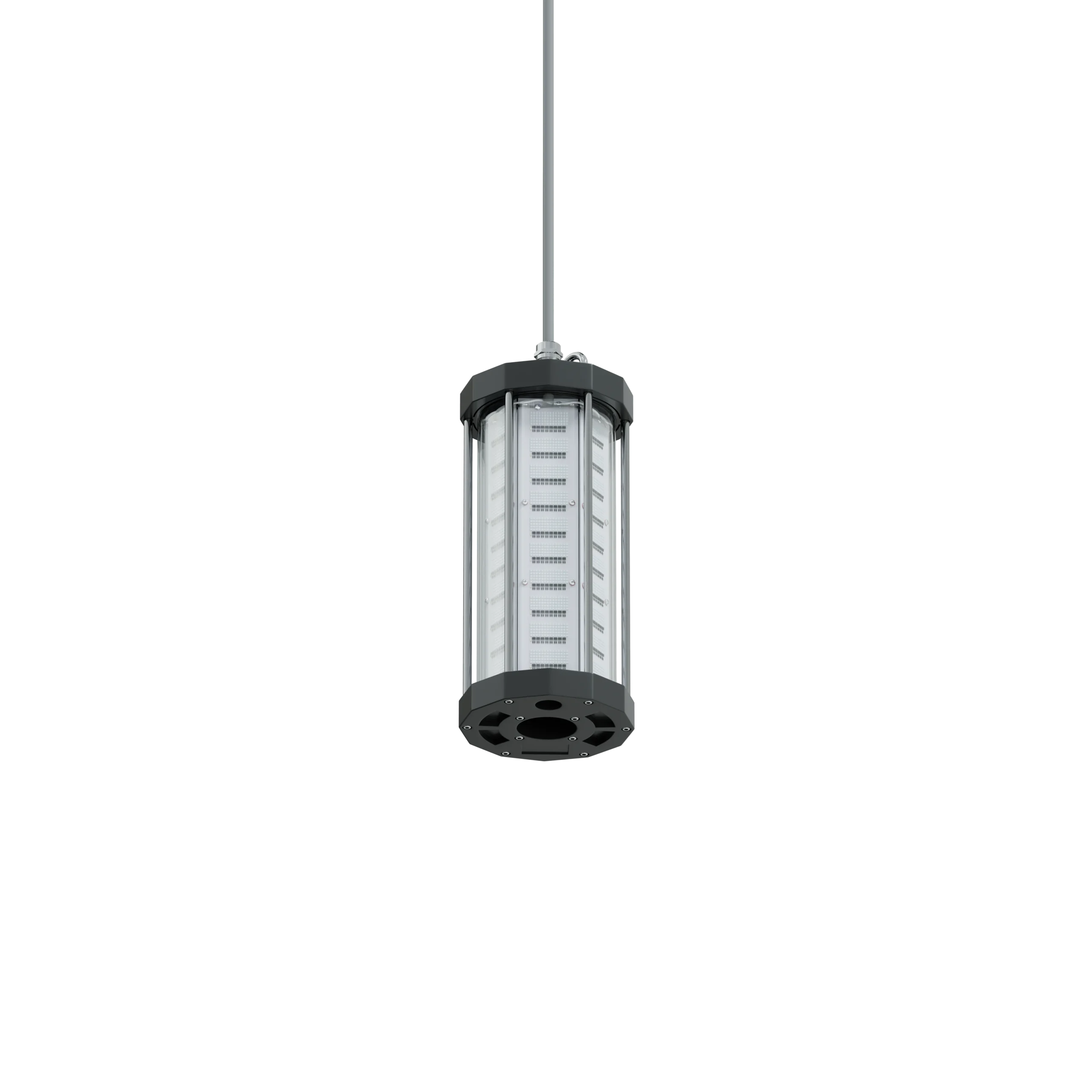

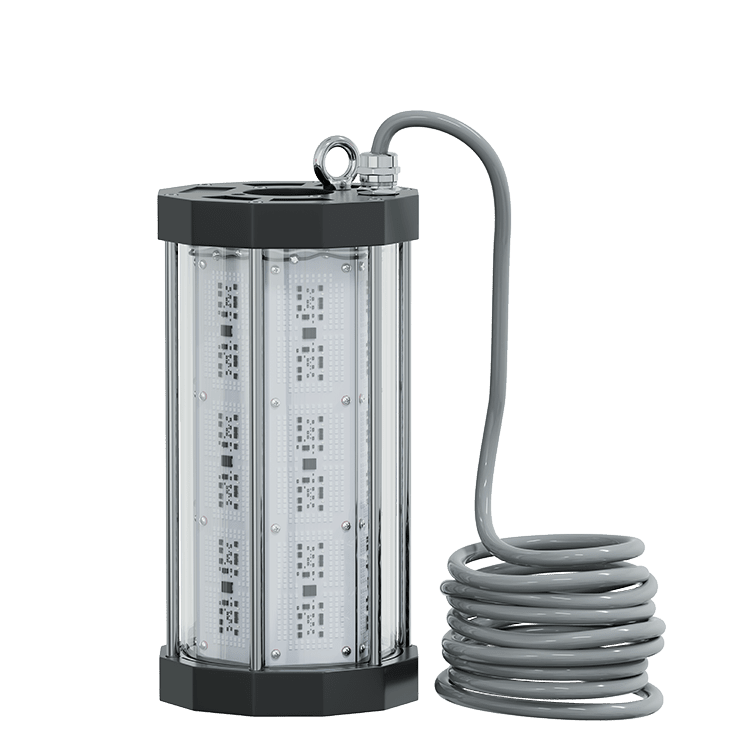

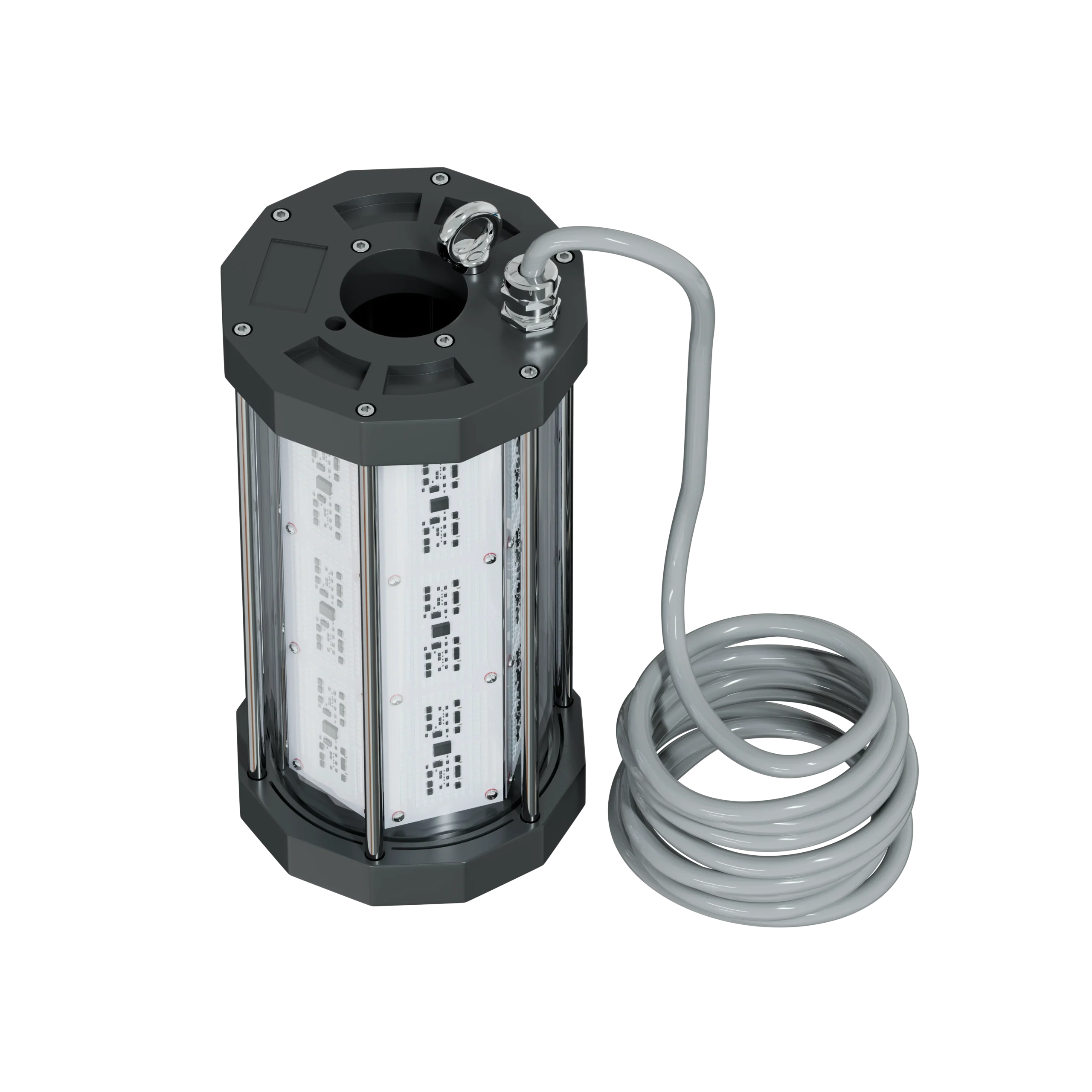

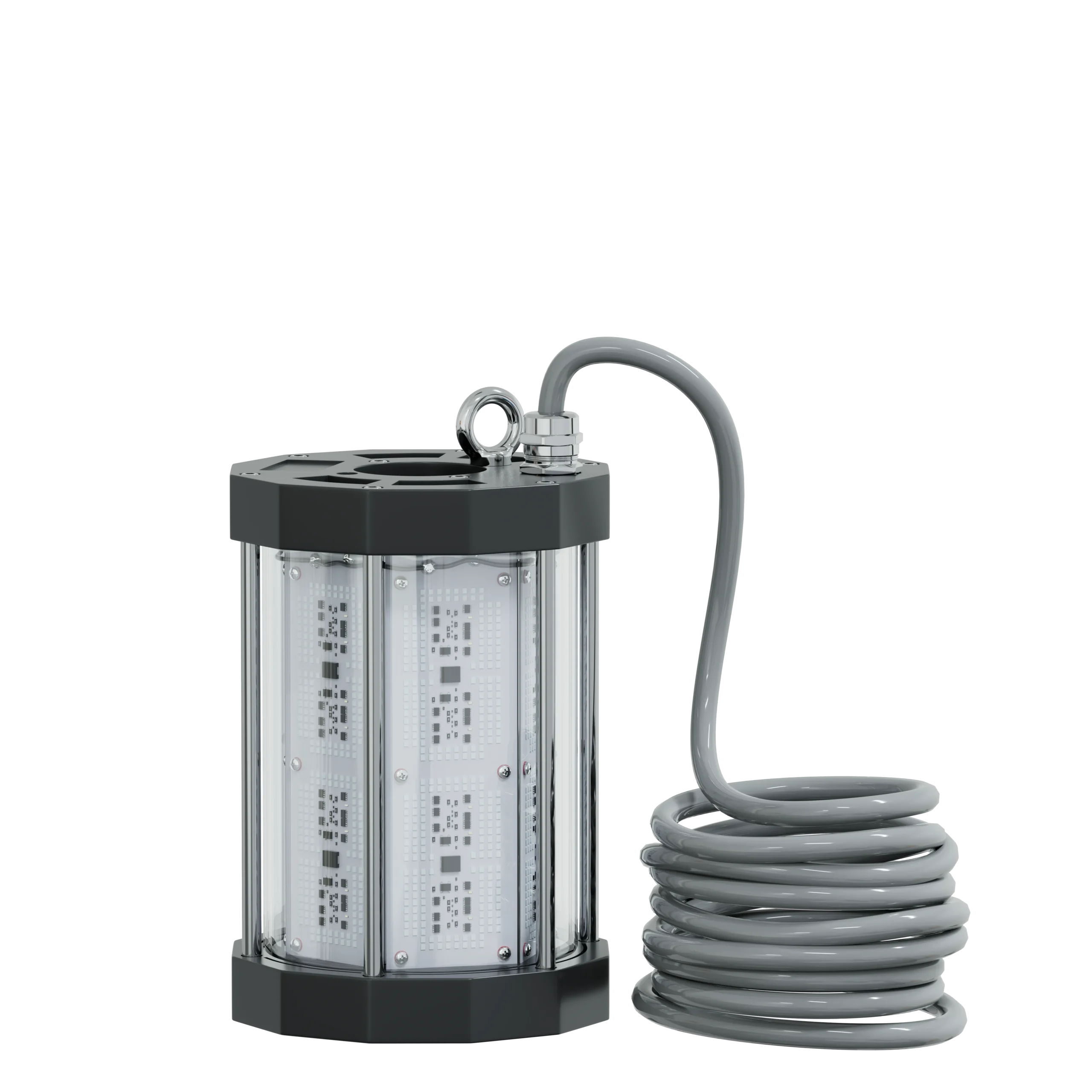

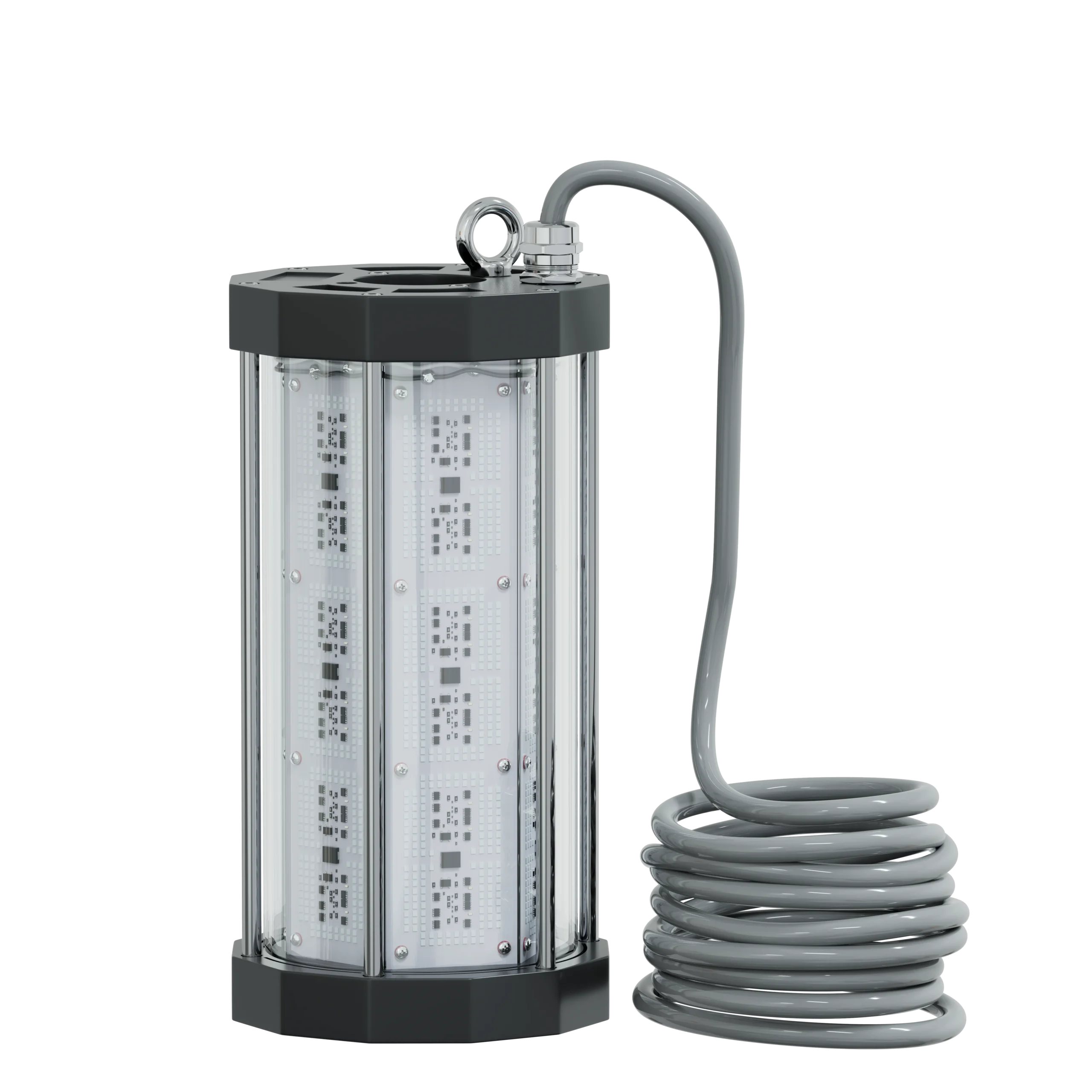

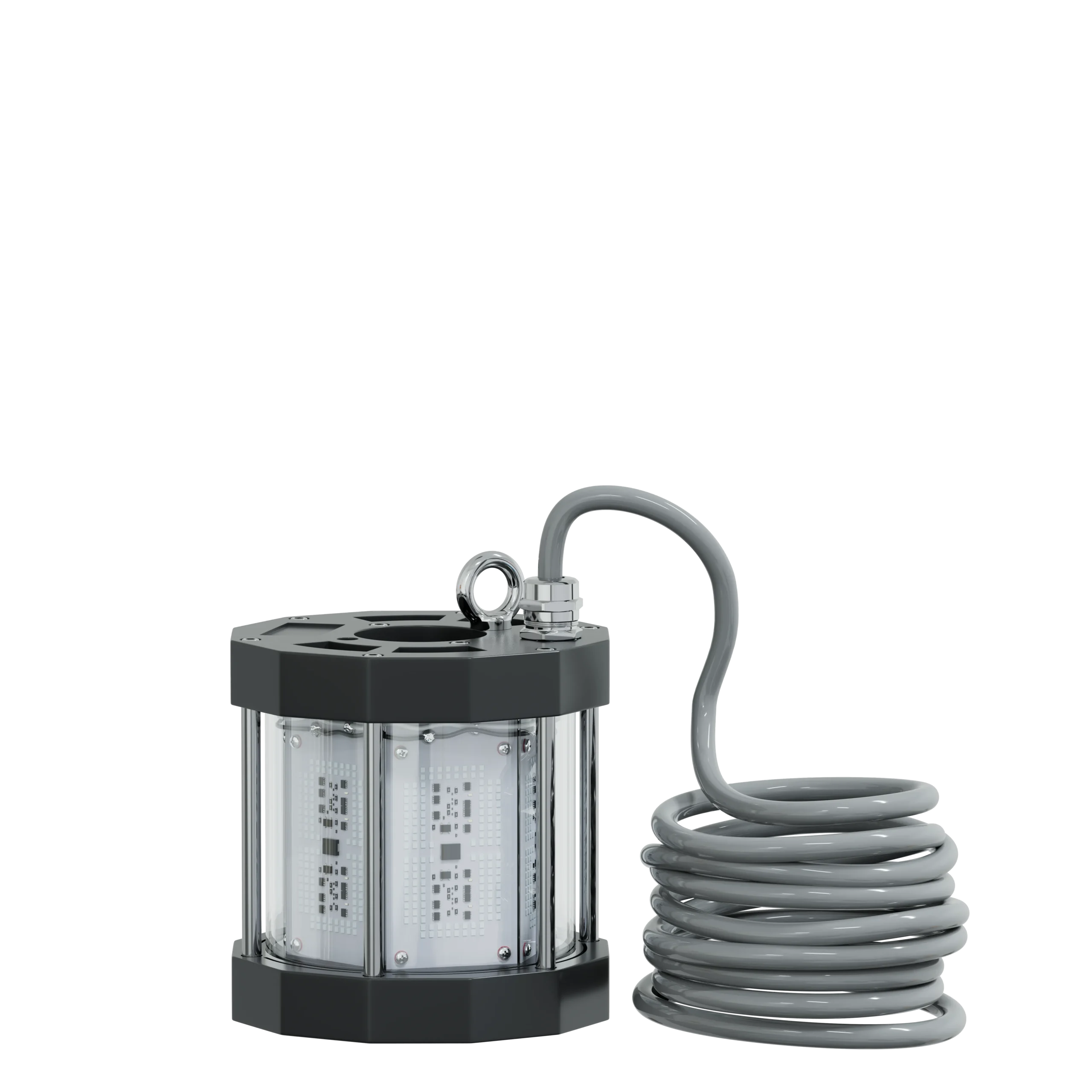

The F-UB01 Series Underwater Fishing Light is designed for commercial fishing vessels requiring reliable fish attraction performance and long-term durability. Featuring high-output LEDs and a robust waterproof structure, it helps concentrate fish around fishing operations while maintaining stable performance in demanding marine environments.
• High-Output Fish Attraction Light
• Strong Underwater Penetration
• Stable Performance for Commercial Fishing
• IP68 Waterproof Protection

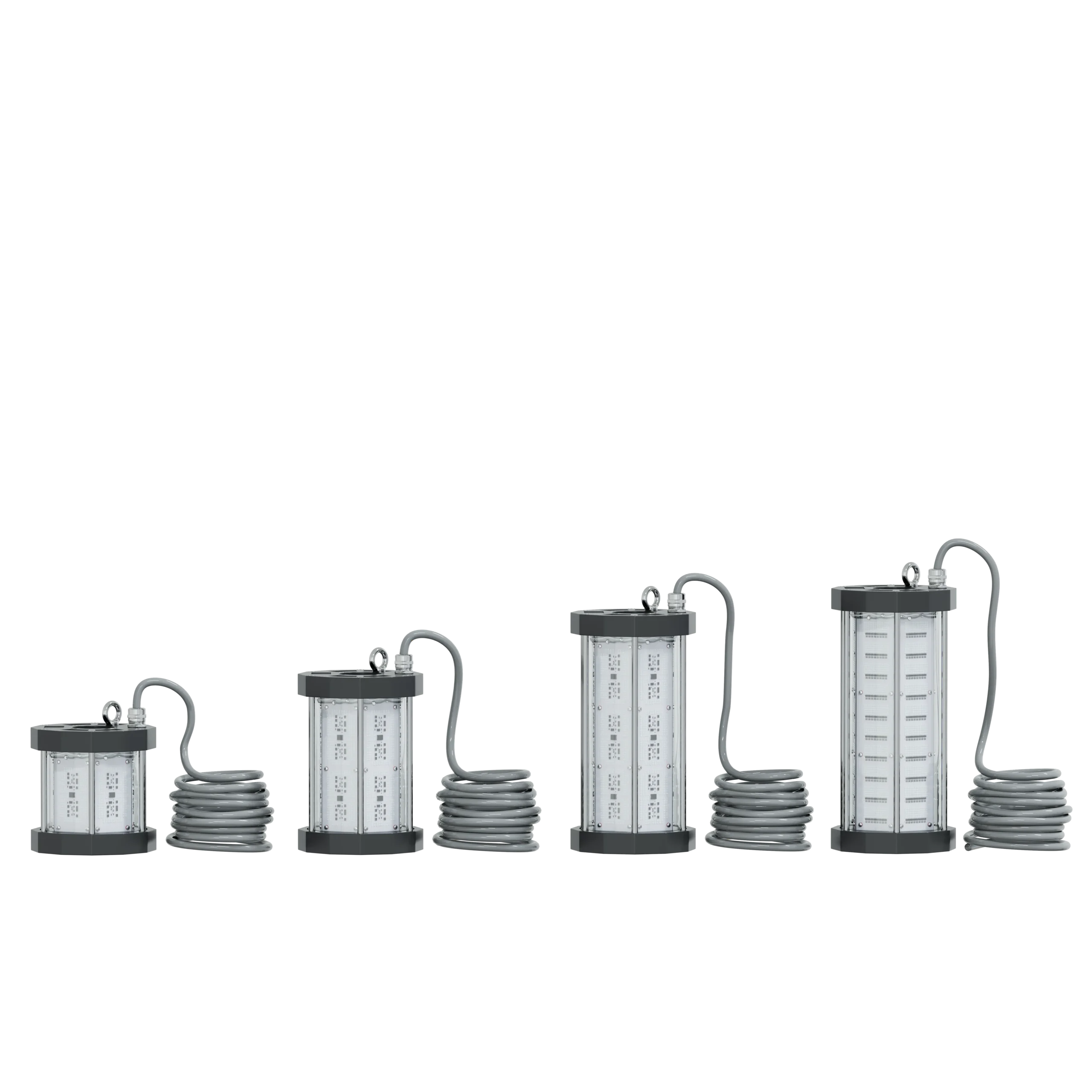

• Multiple Power Options Available
green/cyan/blue/red
white/neutral/warm light
• 360° Light Emission
• Attracts More Fish Faster
• Suitable for Offshore Fishing
• Fully Sealed Structure
• Deep Water Operation
• No Water Leakage Risk

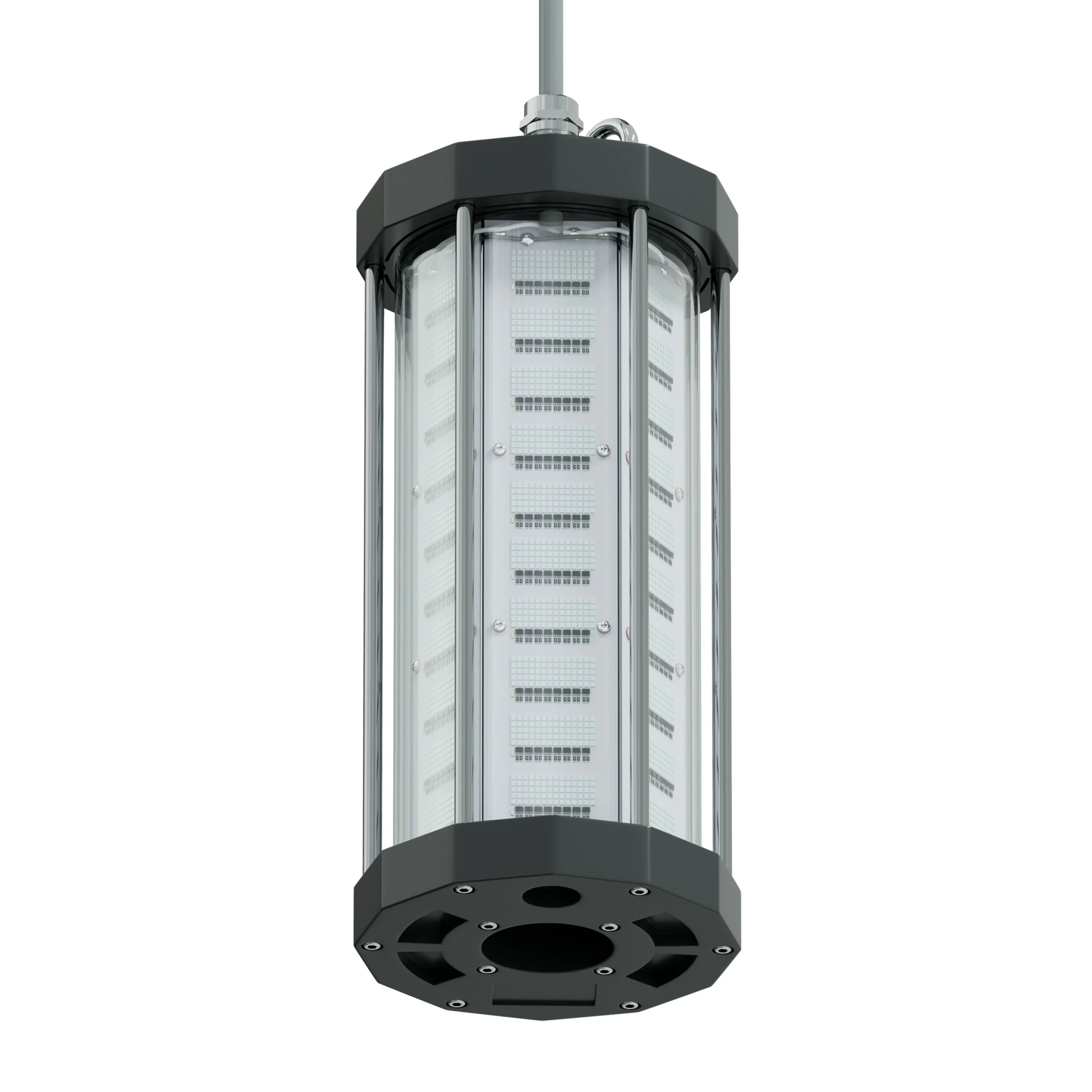

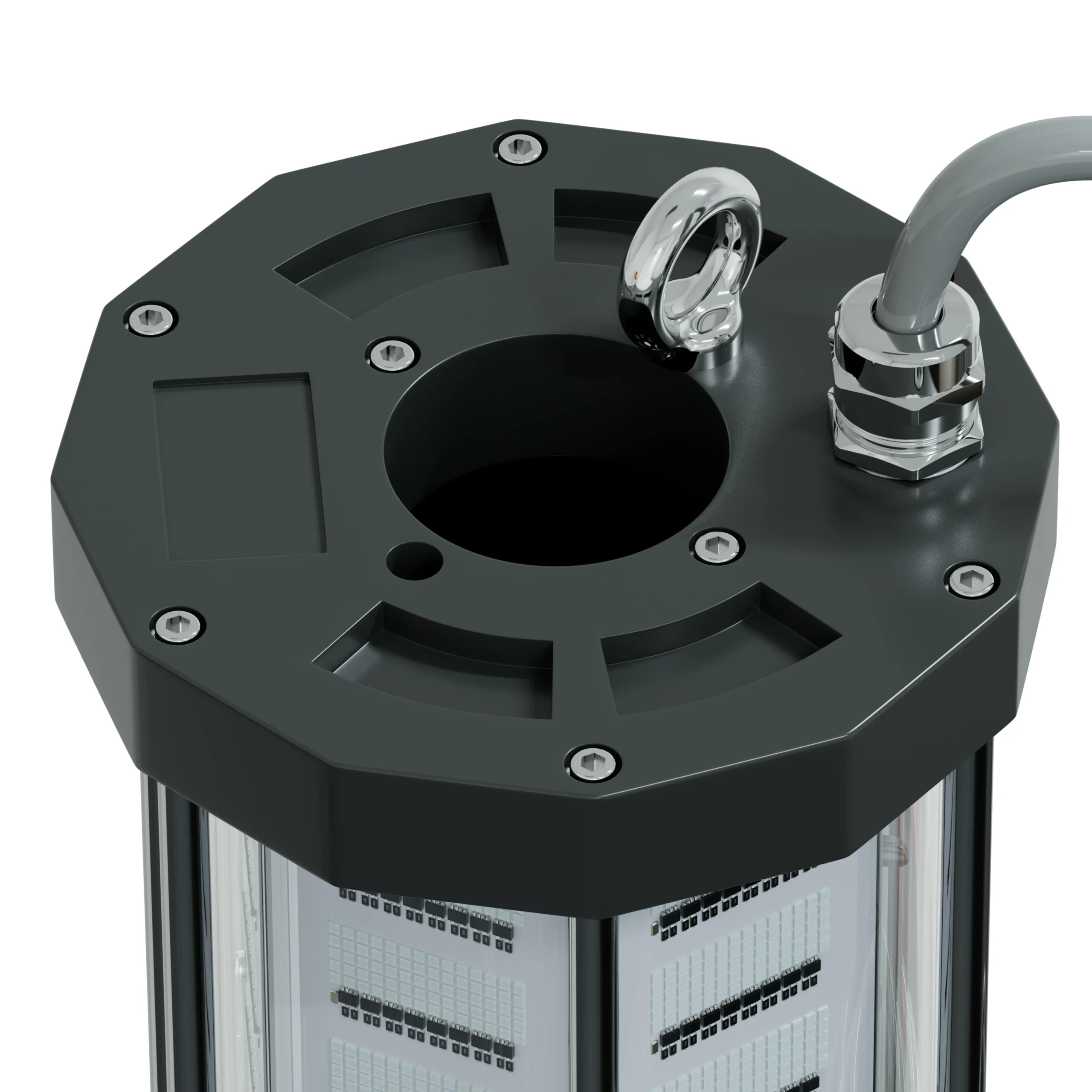

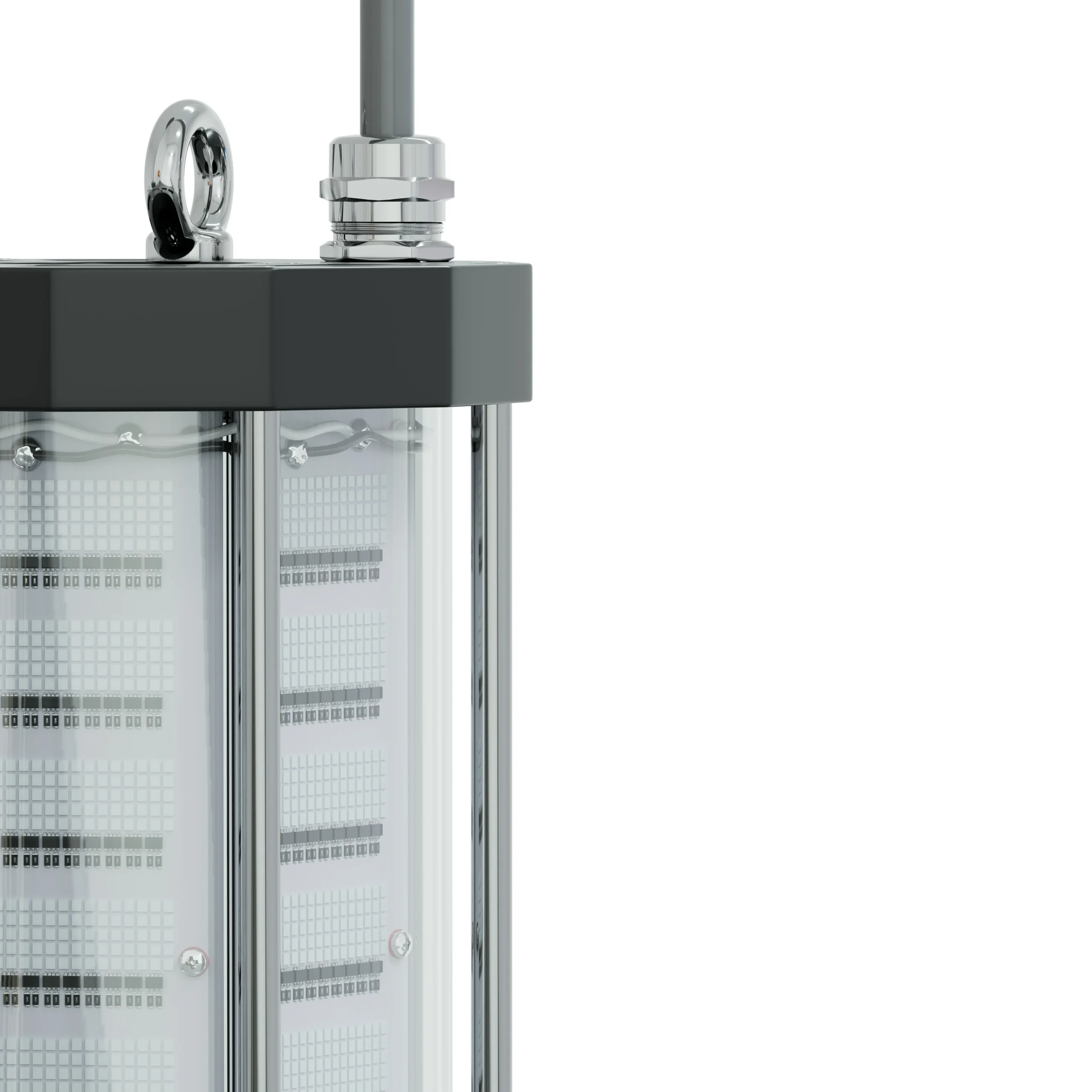

• Aluminum Alloy Housing
• Hollow Internal Structure
• Convection Cooling System

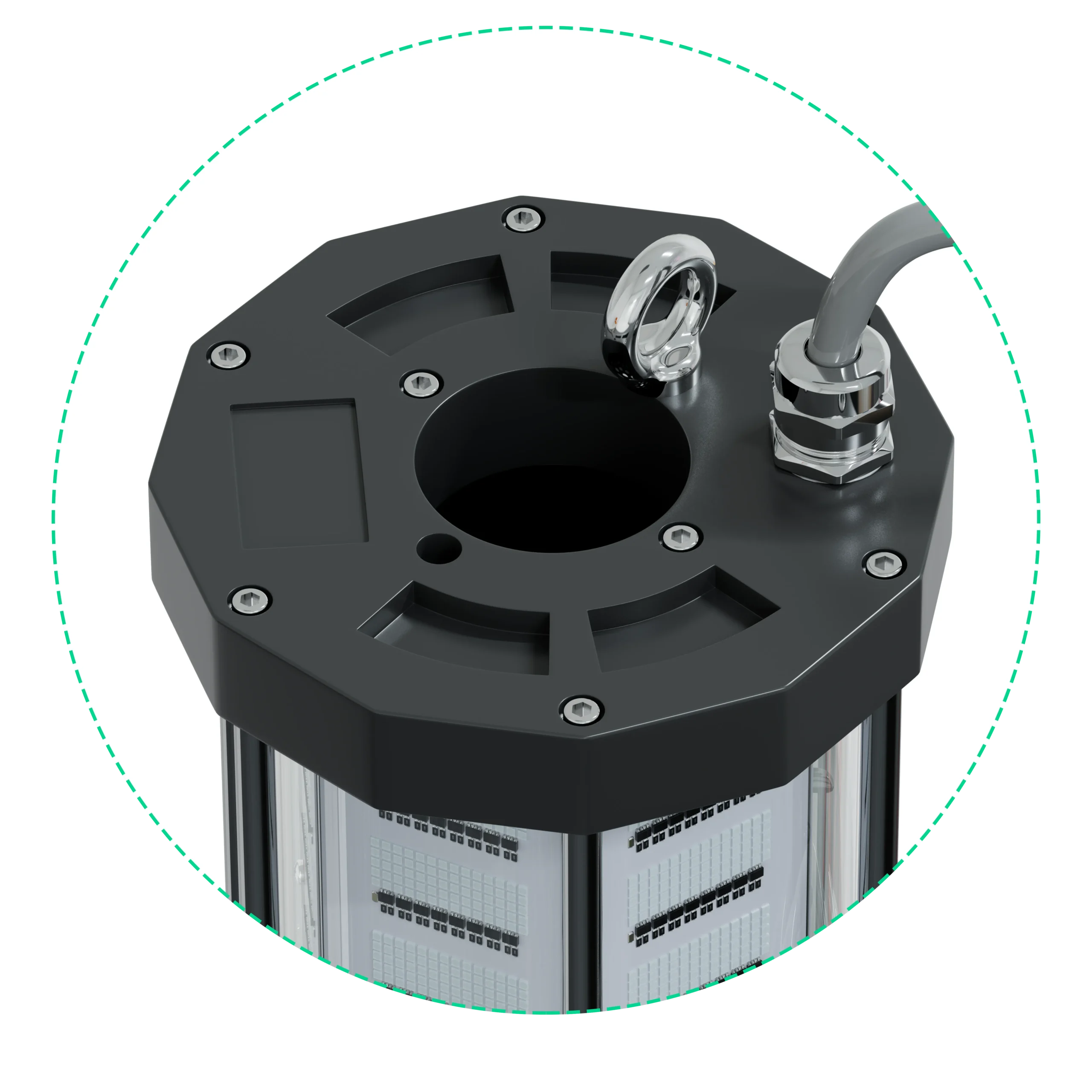

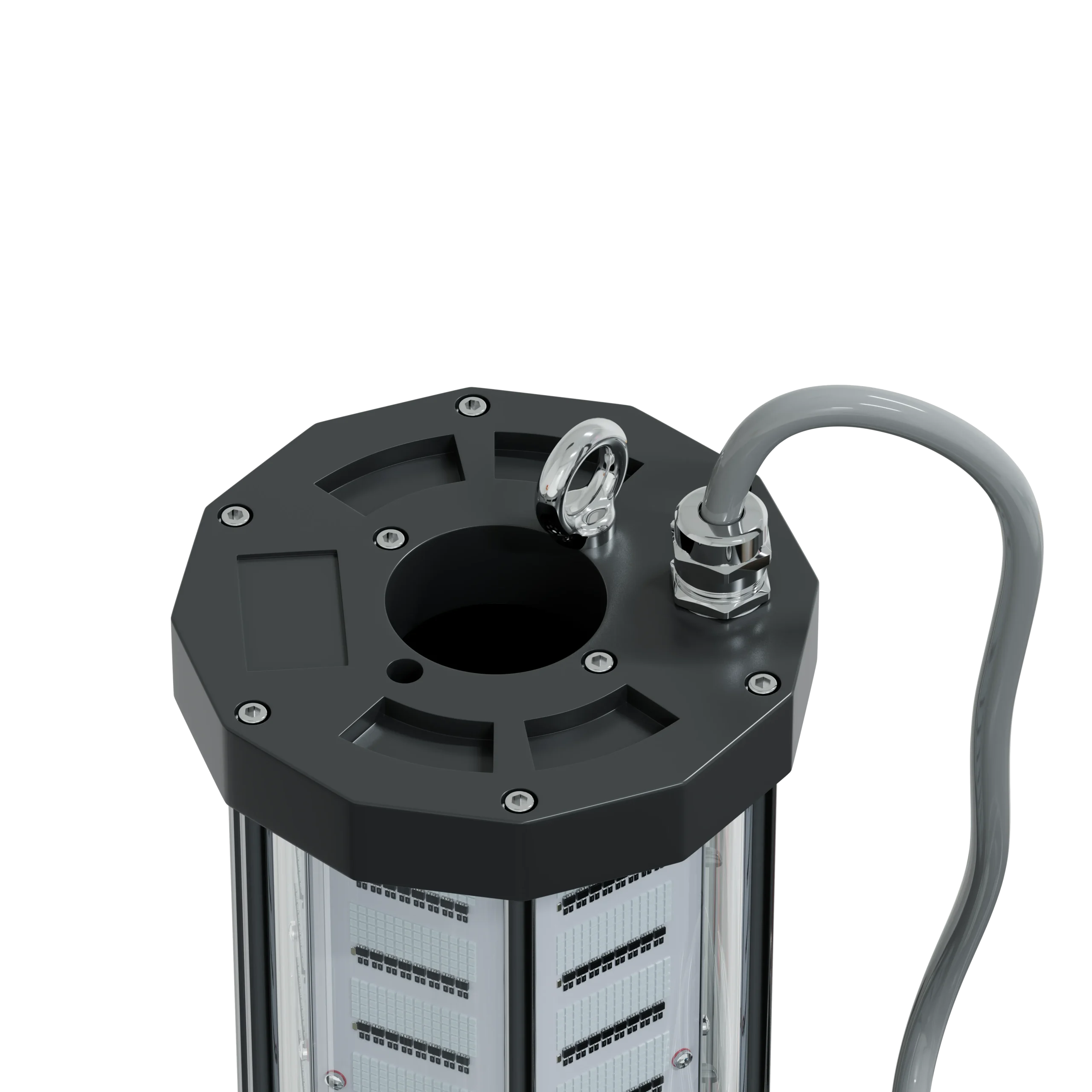

316 grade screws
IP68 waterproof connector

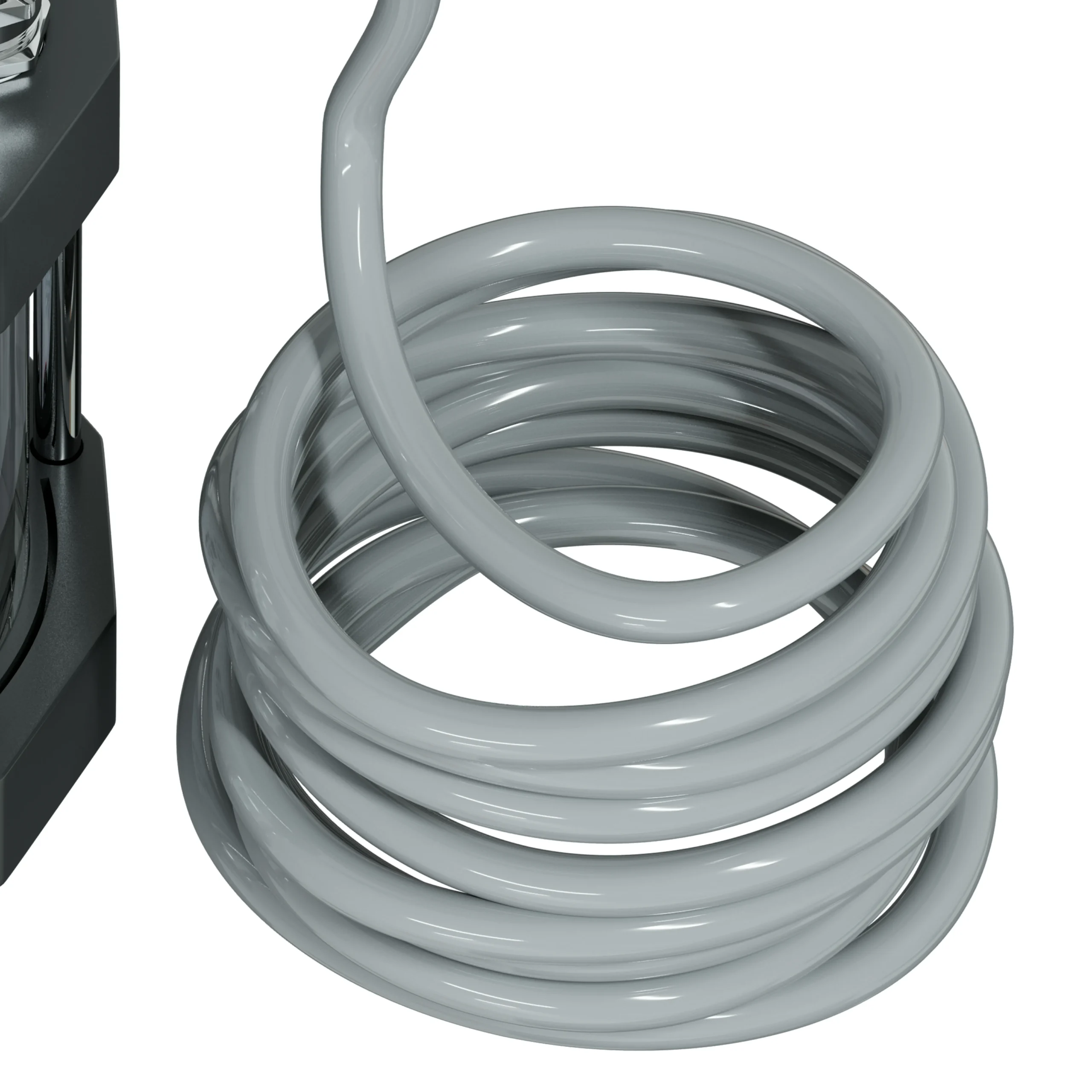

10 meters line length, customizable length
High light 3030LED chips
Thickened PC shell

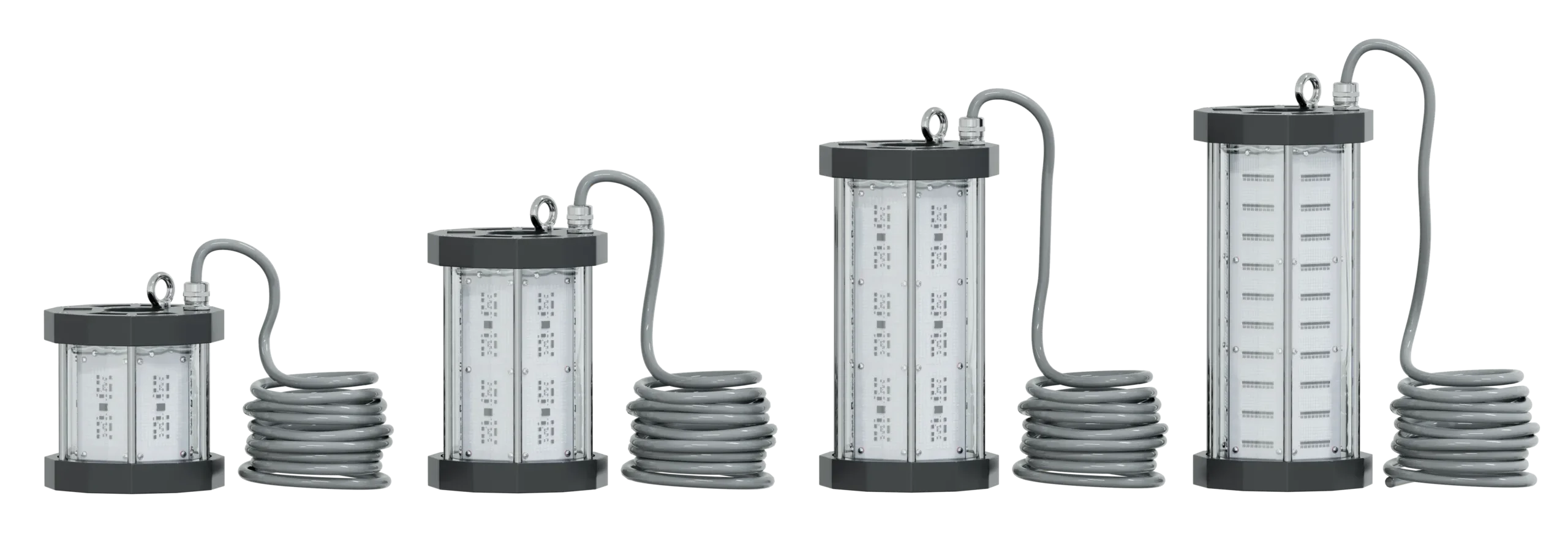

Power：800-900W
Voltage：200-265VAC/50~60HZ
IP Rating：IP68
Emitting Angle：360°
Material：Aluminum Alloy
Color：Blue/Cyan/Green/Red/White/Yellow
Cable Length：30m/98.43 ft

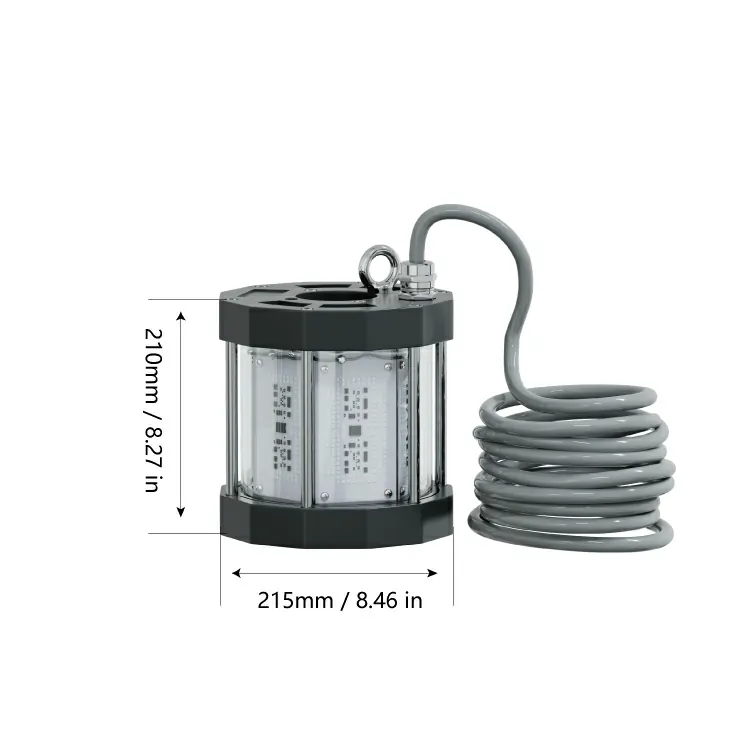

Size：Φ:215mm*L: 210mm / Φ:8.46 in*L: 8.27 in
Warranty：1-Year
Power：1700-1800W
Voltage：200-265VAC/50~60HZ
IP Rating：IP68
Emitting Angle：360°
Material：Aluminum Alloy
Color：Blue/Cyan/Green/Red/White/Yellow
Cable Length：30m/98.43 ft

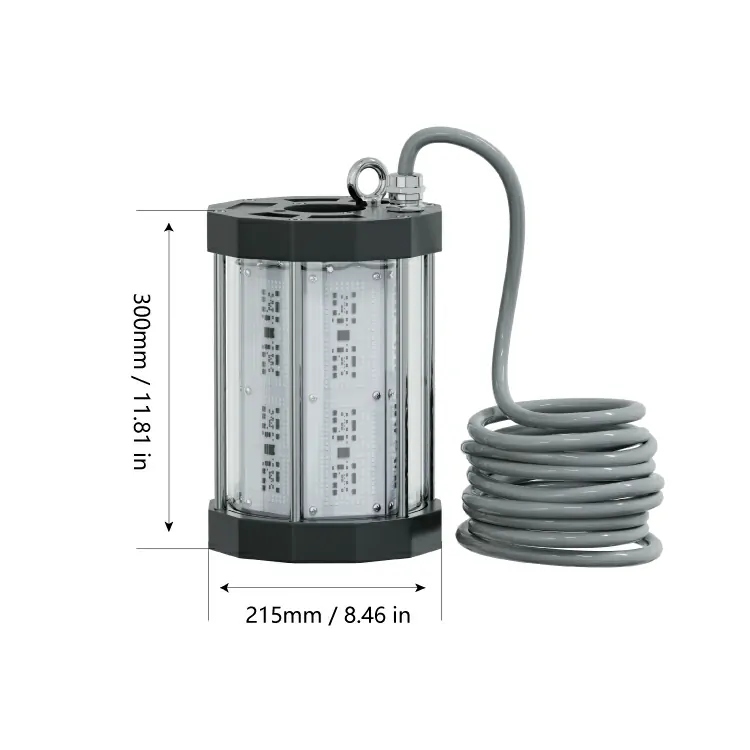

Size：Φ:215mm*L: 300mm / Φ:8.46 in*L: 11.81 in
Warranty：1-Year
Power：2500-2600W
Voltage：200-265VAC/50~60HZ
IP Rating：IP68
Emitting Angle：360°
Material：Aluminum Alloy
Color：Blue/Cyan/Green/Red/White/Yellow
Cable Length：30m/98.43 ft

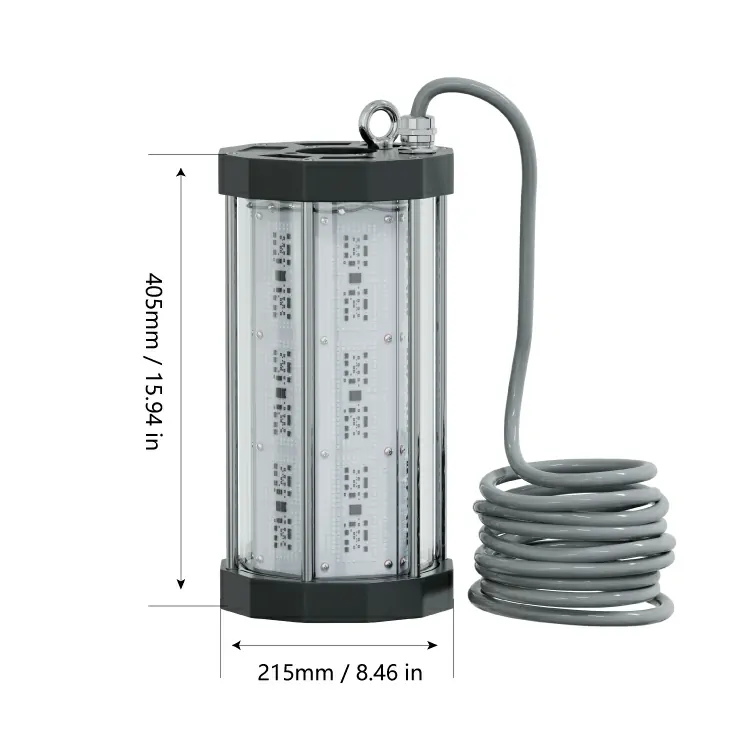

Size：Φ:215mm*L: 405mm / Φ:8.46 in*L: 15.94 in
Warranty：1-Year
Power：3400-3500W
Voltage：200-265VAC/50~60HZ
IP Rating：IP68
Emitting Angle：360°
Material：Aluminum Alloy
Color：Blue/Cyan/Green/Red/White/Yellow
Cable Length：30m/98.43 ft

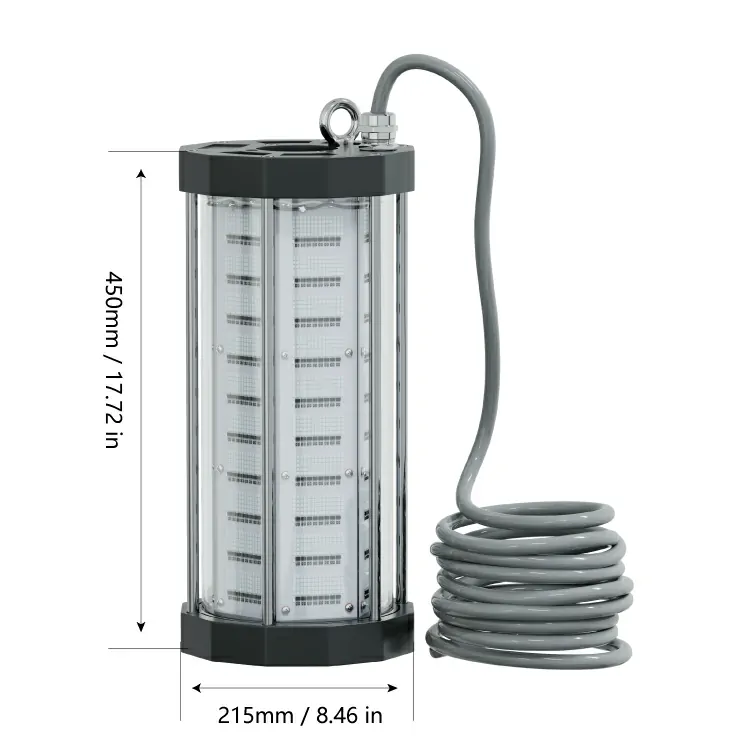

Size：Φ:215mm*L: 450mm / Φ:8.46 in*L: 17.72 in
Warranty：1-Year
* green（main），Deeper penetration，Attract plankton一 attract fish
High-intensity lighting designed for large-scale commercial fishing vessels.
Maximize fish aggregation and improve catch efficiency in deep sea operations.
Perfect for night boat fishing.
Powerful underwater light attracts baitfish and predator fish around your boat.
Turn docks and piers into fish hotspots.
Bright green light attracts plankton and baitfish, bringing bigger fish closer.
Optimized spectrum for squid attraction.
Increase catch rates with high-lumen, stable underwater lighting.
Yes, it works for seawater, and also for freshwater lakes and rivers.
＜100米 / ＜328.084 ft
Green light is widely considered the most effective color for fishing. It penetrates deeper into the water and attracts plankton, which in turn draws small fish and larger predator fish. This makes green light ideal for night fishing, offshore fishing, and most underwater applications.
The green light creates ideal feeding conditions for fish. The bright green light attracts small zooplankton, which in turn lures baitfish. As the baitfish gather, larger predatory fish follow, greatly increasing your chances of a successful catch!
No complicated installation is required. The light operates on a standard 200–265VAC, 50/60Hz power supply. For safety, it must be connected through a compliant residual current circuit breaker (RCCB). Simply secure the light with a strong rope, lower it into the water, and then switch on the power. Professional electrical connection is recommended to ensure safe and stable operation.
Yes, green lights are effective year-round! They attract zooplankton, baitfish, and predators. They work best in warmer months when fish are more active, but are equally effective in colder months.
